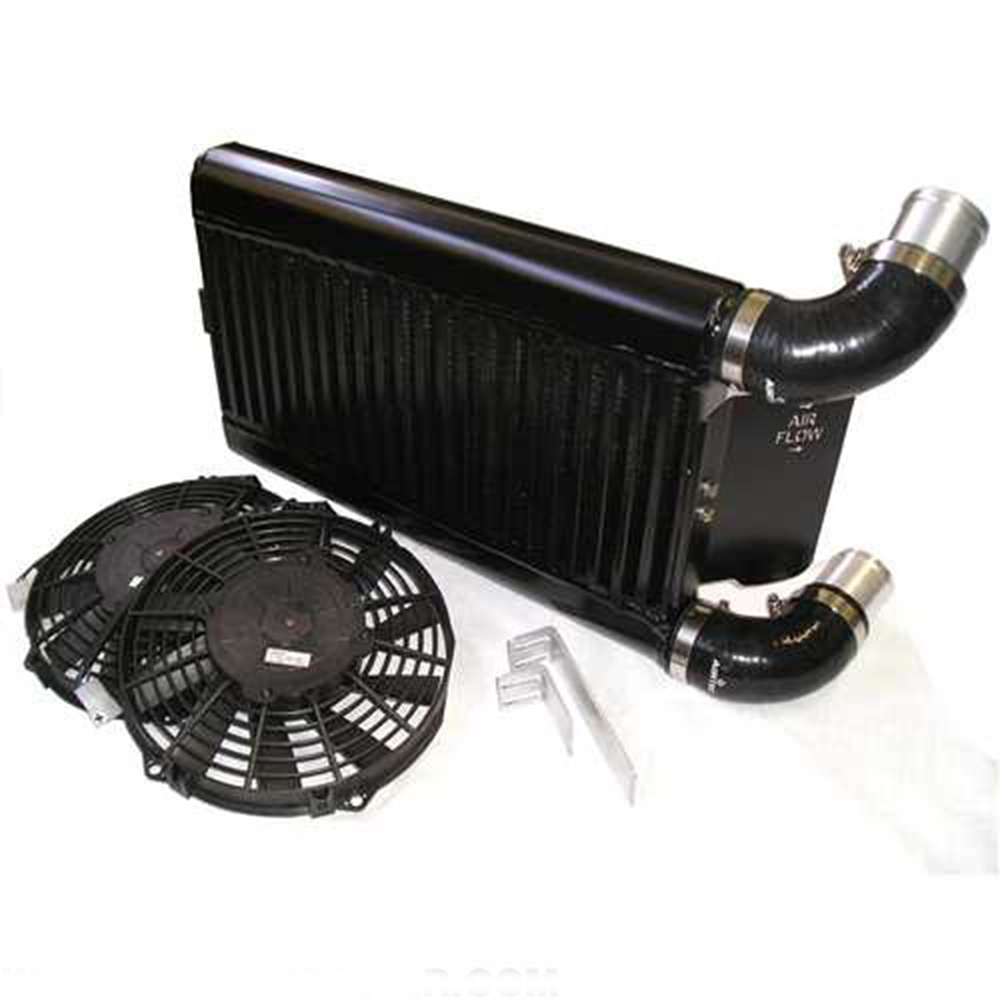

AIRTEC 50mm Core Intercooler Upgrade for Escort RS Turbo S2

Technical Data

As part of our expanding RS Turbo product range, AIRTEC Motorsport is proud to launch our intercooler upgrade suitable for track or fast road use.

This full size intercooler is suitable for the Series 2 RS Turbo model only and fits with only very minor cutting required. It comes complete with a slim line twin fan set up to clear the original bumper.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a high flow, single pass core with 50mm depth. This offers a massive increase in overall capacity in comparison to the original intercooler, as well as a significant increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

The kit fits neatly behind the original bumper and can be reverted back to standard with no issues and the comprehensive fitting kit includes all the correct fixtures and fittings.

What is a Single Pass Intercooler?
The main visual difference is that the core runs top to bottom instead of left to right like a twin pass intercooler, This means that the core is vertical which allows the cooling core to be lined up side by side. This results in no boost pressure loss and better throttle response.

Features:

• 50mm thick track proven bar and plate core
• AIRTEC cast end tanks for improved air flow and unbeatable strength
• Air deflector to aid in lower engine bay temps
• Twin 9″ Italian slim line fans
• Full fitting kit included
• 3-year unlimited mileage warranty
• Available in Natural Silver or Pro-Series Black
• AIRTEC logo available at no extra charge

Available in Pro-Series Black or Natural Silver

Registered Design Right number: Application Pending

AIRTEC part no: ATINTFO7
