AIRTEC 60mm Core Intercooler Upgrade for Astra Mk5 1.9 Diesel

Technical Data

A great upgrade for all Astra 1.9 CDTI, especially with a remapped ECU. Perfect for fast road and even track use. As fitted to our AIRTEC Motorsport demo car.

TESTED
Test Results at AMD Tuning Essex 11/02/14 – Test vehicle fitted with AIRTEC Motorsport intercooler and dyno’d with standard map, then Stage 1 remap.

Standard map with AIRTEC Motorsport intercooler upgrade:
Run 1 – Intake temperature 115 degrees (charge air temp going into intercooler) & 13 degrees outlet temperature (charge air temp coming out of intercooler)
Run 2– Intake temperature 118 degrees (charge air temp going into intercooler) & 18 degrees outlet temperature (charge air temp coming out of intercooler)
Run 3 – Intake temperature 119 degrees (charge air temp going into intercooler) & 18 degrees outlet temperature (charge air temp coming out of intercooler)

Conclusion: Over the three test runs the AIRTEC Motorsport intercooler cooled down the charged air temperature by an average of 101 degrees.

Stage 1map with AIRTEC Motorsport intercooler upgrade:
Run 1 – Intake temperature 128 degrees (charge air temp going into intercooler) & 19 degrees outlet temperature (charge air temp coming out of intercooler)
Run 2– Intake temperature 128 degrees (charge air temp going into intercooler) & 23 degrees outlet temperature (charge air temp coming out of intercooler)
Run 3 – Intake temperature 136 degrees (charge air temp going into intercooler) & 25 degrees outlet temperature (charge air temp coming out of intercooler)

Conclusion: Over the  test runs the AIRTEC intercooler cooled down the charged Air Temperature by an average of 108 degrees.

Dimensions:
Width: 875mm
Height: 230mm
Depth: 60mm

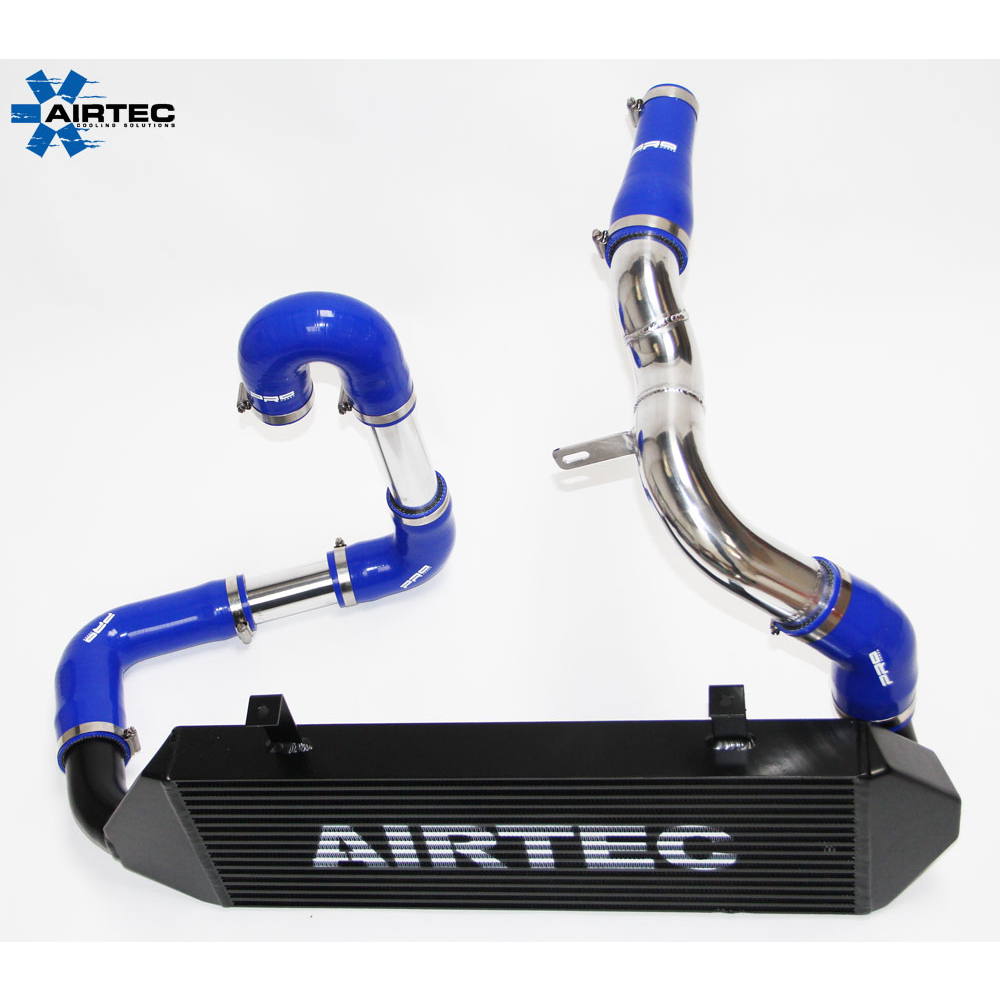

Features:

• Huge 60mm core Intercooler with flowed cast end tanks, this means less welding and a stronger Intercooler
• High quality 4/5ply silicon hose’s with alloy joiners & stainless jubilee clips
• Powder coated standard intercooler support brackets
• Retains original fog lights without modification
• Fitting instructions and all required fixings
• Unbeatable value for money
• Proven power increases for fast road and track
• Available in Satin Black or Natural Silver

Registered Design Right number: Application Pending

AIRTEC part no: ATINTVAUX2
