AIRTEC Motorsport Intercooler Upgrade for E46 320D

Technical Data

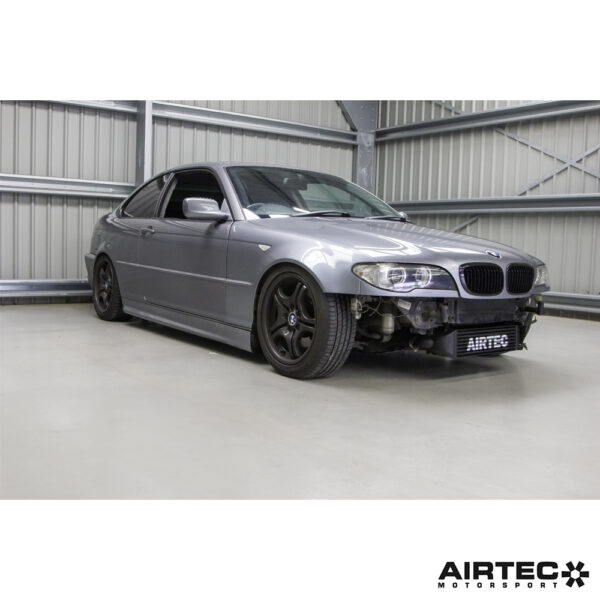

As part of our expanding BMW product range, AIRTEC Motorsport is proud to launch our intercooler upgrade for the E46 320d model suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

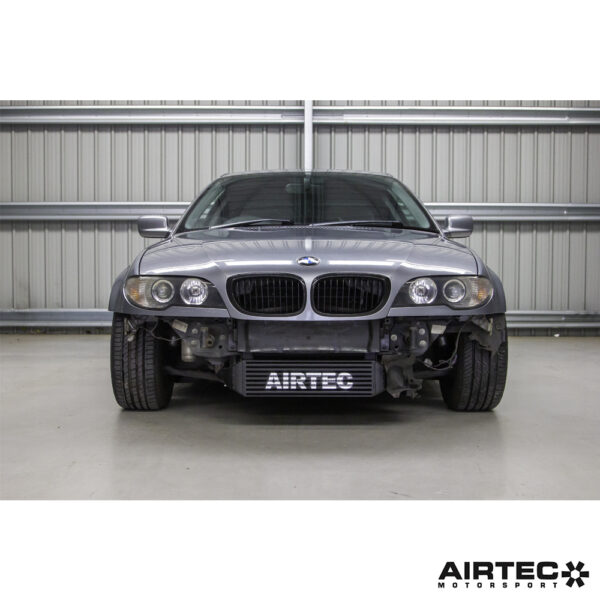

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a taller core with an increased 110mm depth.

The result is a core that’s 120% deeper than the original, offering a massive 1947% increase in overall capacity in comparison to the OEM intercooler and there’s also a 34% increase in frontal area, which allows it to make the most of the air flow provided.

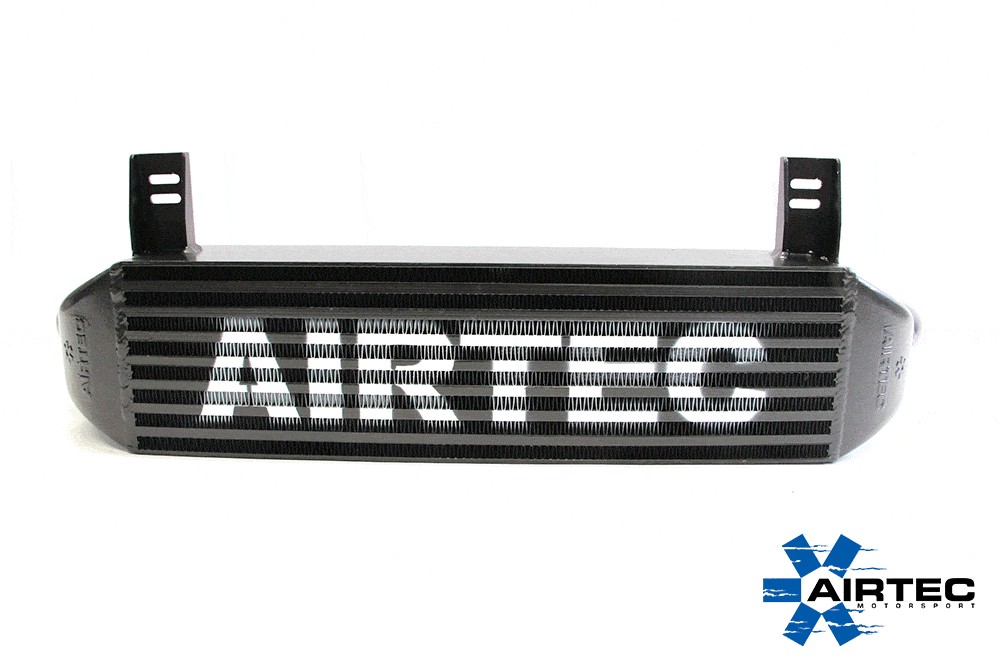

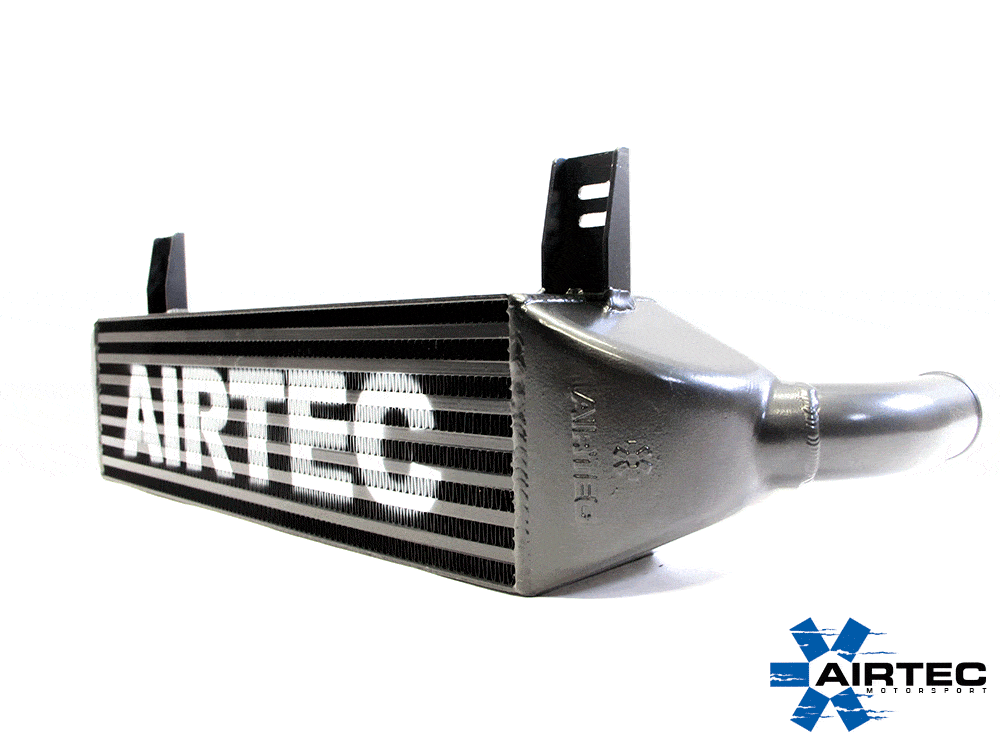

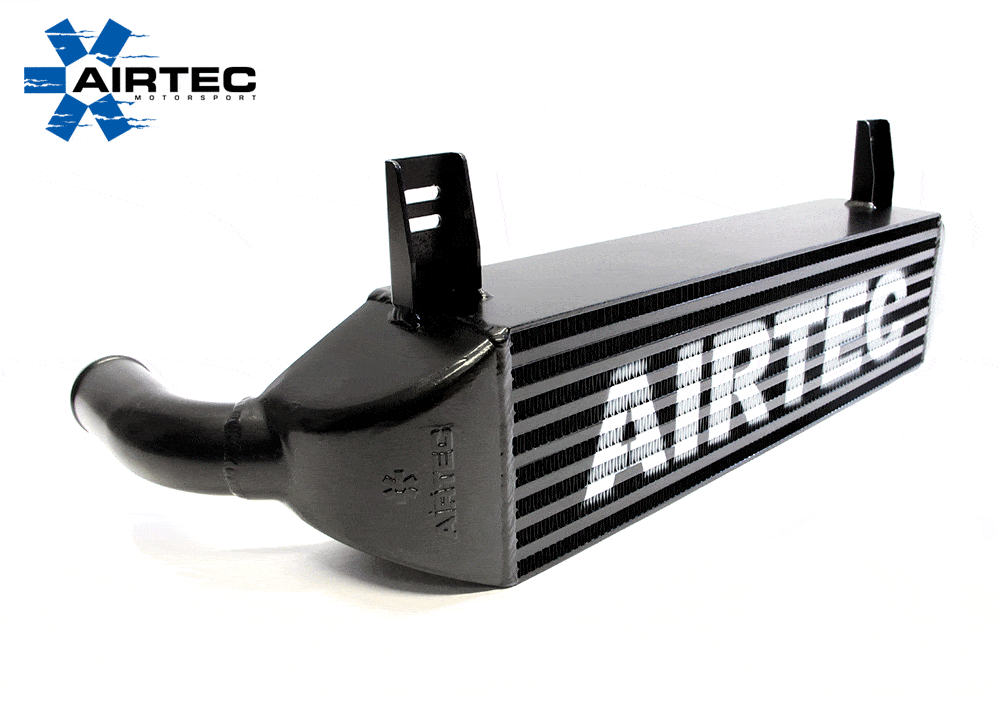

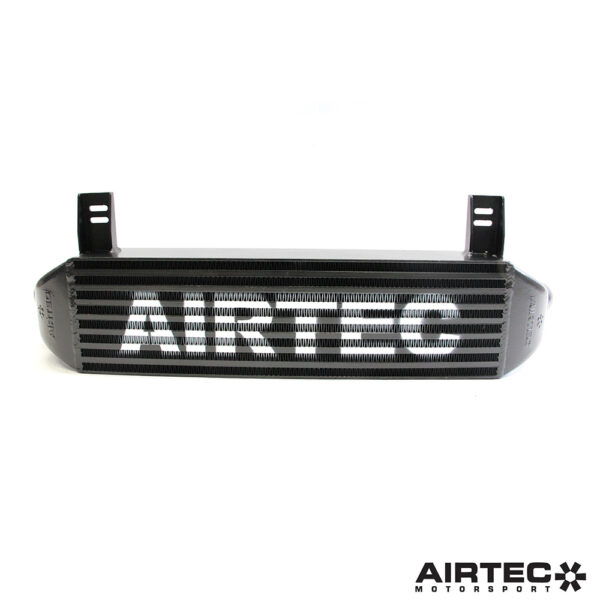

Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

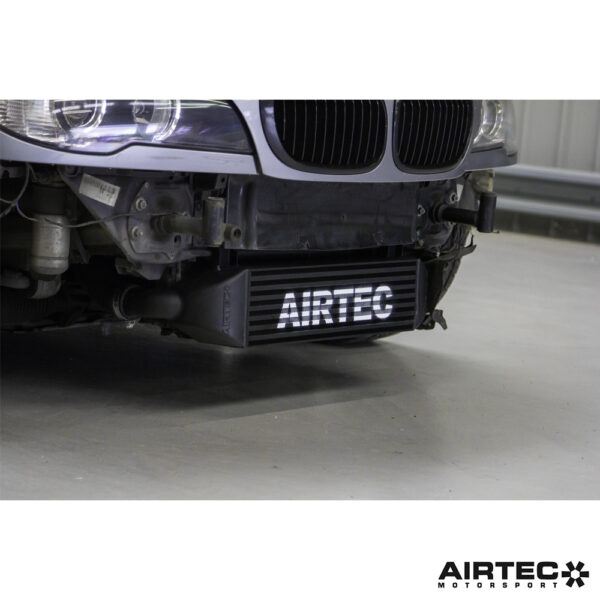

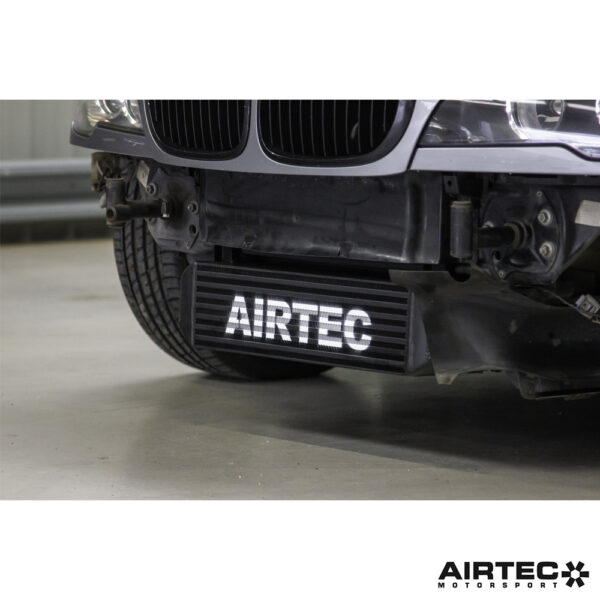

Available in a high quality powder coated black finish, the comprehensive kit is a direct replacement comes with all fixtures and fittings, as well as detailed fitting instructions.

Dimensions:
Original intercooler
Width: 540mm
Height: 130mm
Depth: 50mm
Capacity: 3.51 litres
Front area: 702cm²

AIRTEC Motorsport intercooler
Width: 670mm
Height: 140mm
Depth: 110mm
Capacity: 10.32 litres
Front area: 938cm²

Features:

• Specifically designed for the E46 320d platform
• Huge increase in cooling ability thanks to 110mm core
• Reduced charge temperatures

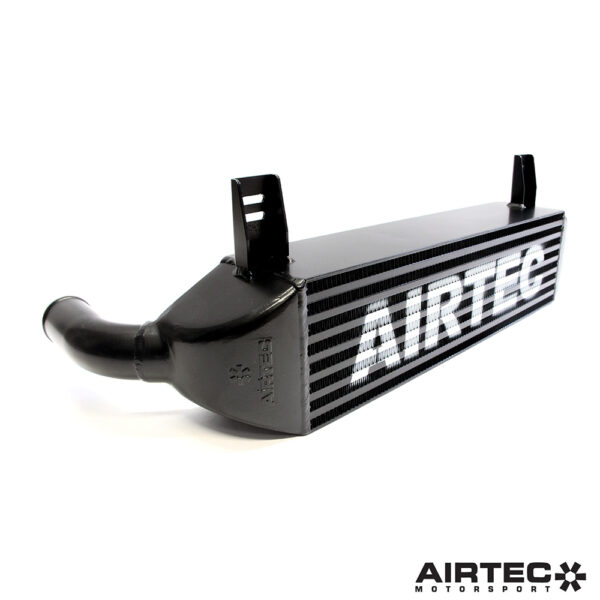

• High-flow, moulded one-piece cast end tanks
• Powder coated black finish
• All fittings and fixtures included
• Detailed fitting guide included
• AIRTEC logo available at no extra charge
• Unbeatable value for money!

PLEASE NOTE:

• The original boost pipe flanges/fittings will need to be cut in order to fit this intercooler
• If you have the additional electric BMW fan fitted to the FRONT of the radiator this will need spacing out on all four moutns to clear the intercooler



Registered Design Right number: Application Pending

AIRTEC part no: ATINTBMW1
