AIRTEC Intercooler Upgrade for SEAT Leon Mk1 150 Diesel

Technical Data

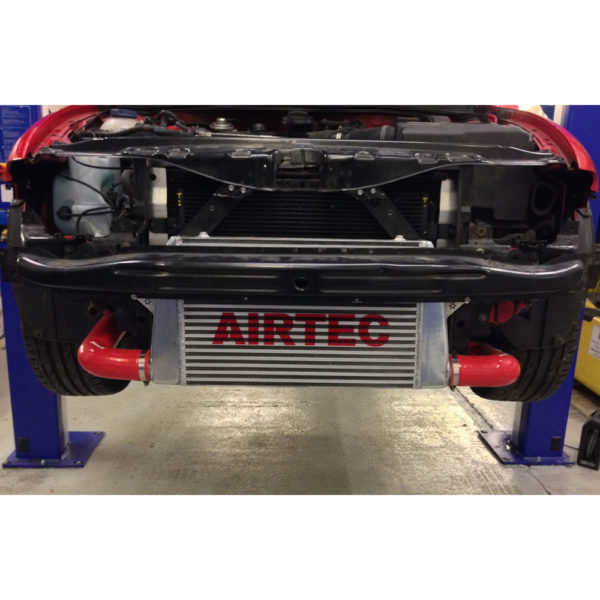

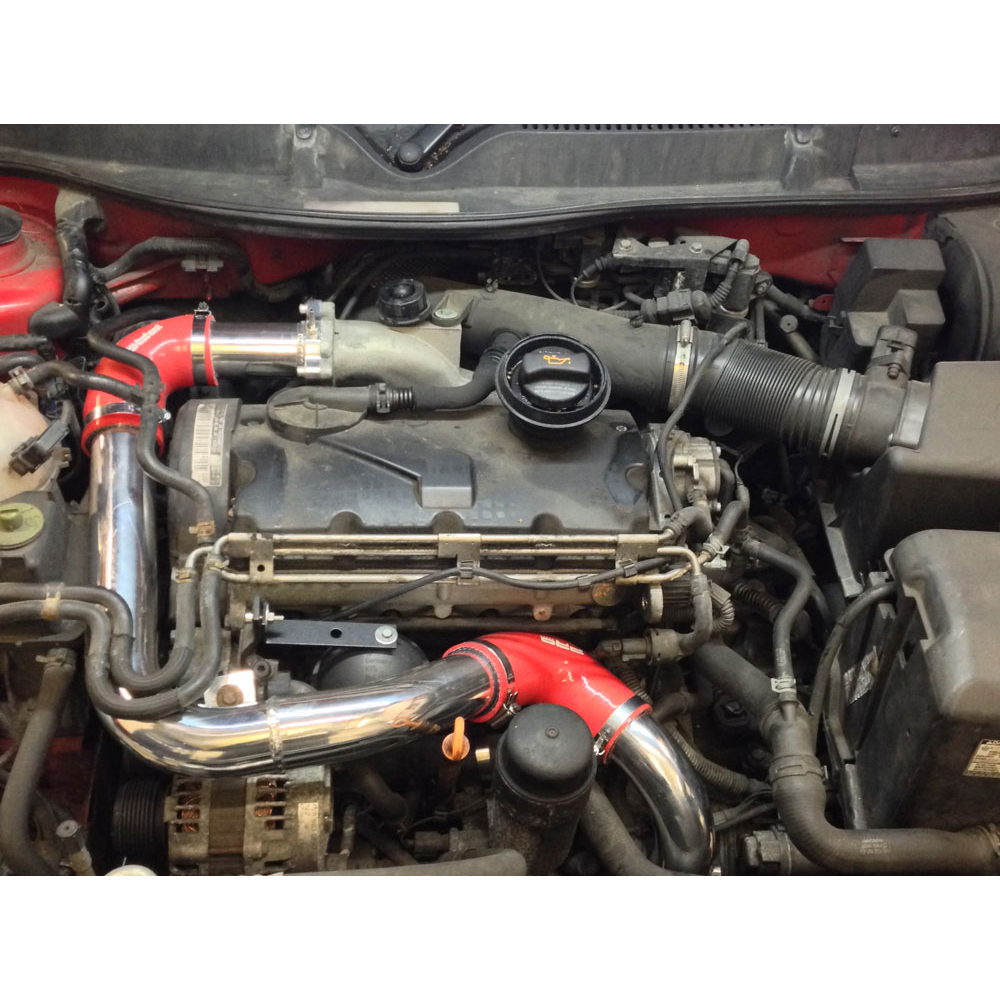

The AIRTEC Motorsport 150 diesel intercooler upgrade for the Seat Leon Mk1 150PD uses our very popular Cupra R intercooler which is capable of 400bhp, the kit comes complete with full alloy boost pipe kit, custom made silicon hoses and coolant rad pack brackets that secure the radiator and air-con radiator in place (the standard intercooler secure these in place as standard).

VAG have used a front mount intercooler design as standard, This intercooler is adequate for cooling non modified vehicles, but as our tests have proven, once even a basic remapping of the ECU (Stage 1 remap) had been carried out, the intake temperatures had risen to very high levels, which in turn leads to power loss. By fitting a bigger and more efficient AIRTEC intercooler the intake temperatures are kept constantly cooler, keeping your engine safe and your power to the maximum.

The AIRTEC Intercooler makes the charged air (intake temps) cooler so you gain horse power, it’s really that simple!

Results taken at Amd Essex – Running standard map and then remapped with AmD Stage 1

TEST RESULTS: Hot Side – into intercooler from turbo and cold side (out of Intercooler into engine).

AIRTEC Motorsport Intercooler standard remap
Run1 – Hot side 135 degrees C & Cold side26 degrees C
Run2 – Hot side 128 degrees C & Cold side23 degrees C
Run3 – Hot side 130 degrees C & Cold side25 degrees C

AIRTEC Motorsport Intercooler Amd remap
Run1 – Hot side 162 degrees C & Cold side 28 degrees C
Run2 – Hot side 156 degrees C & Cold side 26 degrees C
Run3 – Hot side 158 degrees C & Cold side 26 degrees C

The AIRTEC Motorsport Intercooler really comes into its own when used on more modified vehicles, even bigger BHP gains could be seen on serious spec car which include, full exhaust, turbo upgrades etc, these modifications put serious strain on the cooling ability of the stock Intercooler, and you could be losing in excess of 30 bhp! Just by keeping you standard Intercooler fitted.

Dimensions:
Width: 680mm
Height: 340mm
Depth: 60mm
Capacity: 13.9 litres
Frontal Area: 2,312cm²

Features:

• 60mm bar and plate performance intercooler core
• Larger diameter silicone boost hoses in a choice of colours
• CNC machined boost pipe joiner
• Moulded end tanks instead of restrictive plastic pressed end tanks
• Full comprehensive step-by-step fitting instructions
• No extra pipework or additional parts required
• No cutting to bumper or fog light removal
• Pressure tested to over 5-bar
• No additional turbo lag will be experienced due to our end tank design

Please Note: Only fits with EGR delete. If running stock EGR, please contact us before purchasing.

AIRTEC Part No: ATINTVAG9
