AIRTEC Motorsport Intercooler Upgrade for Transit & Custom (EURO 5)

Technical Data

PLEASE NOTE: If your Transit uses AdBlue, it is Euro 6. If it does NOT use AdBlue, it is Euro 5.

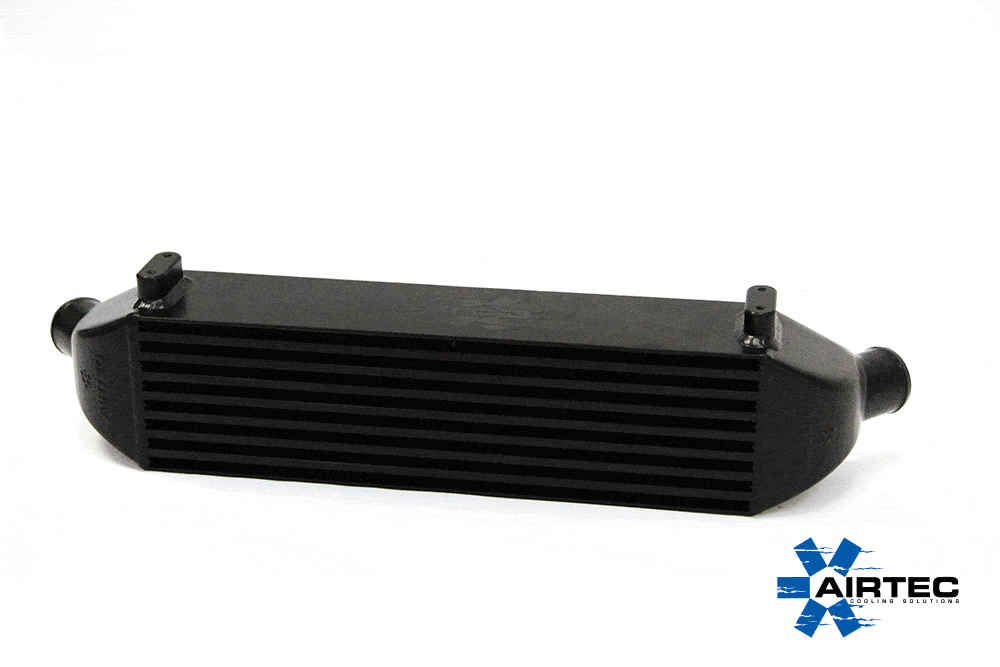

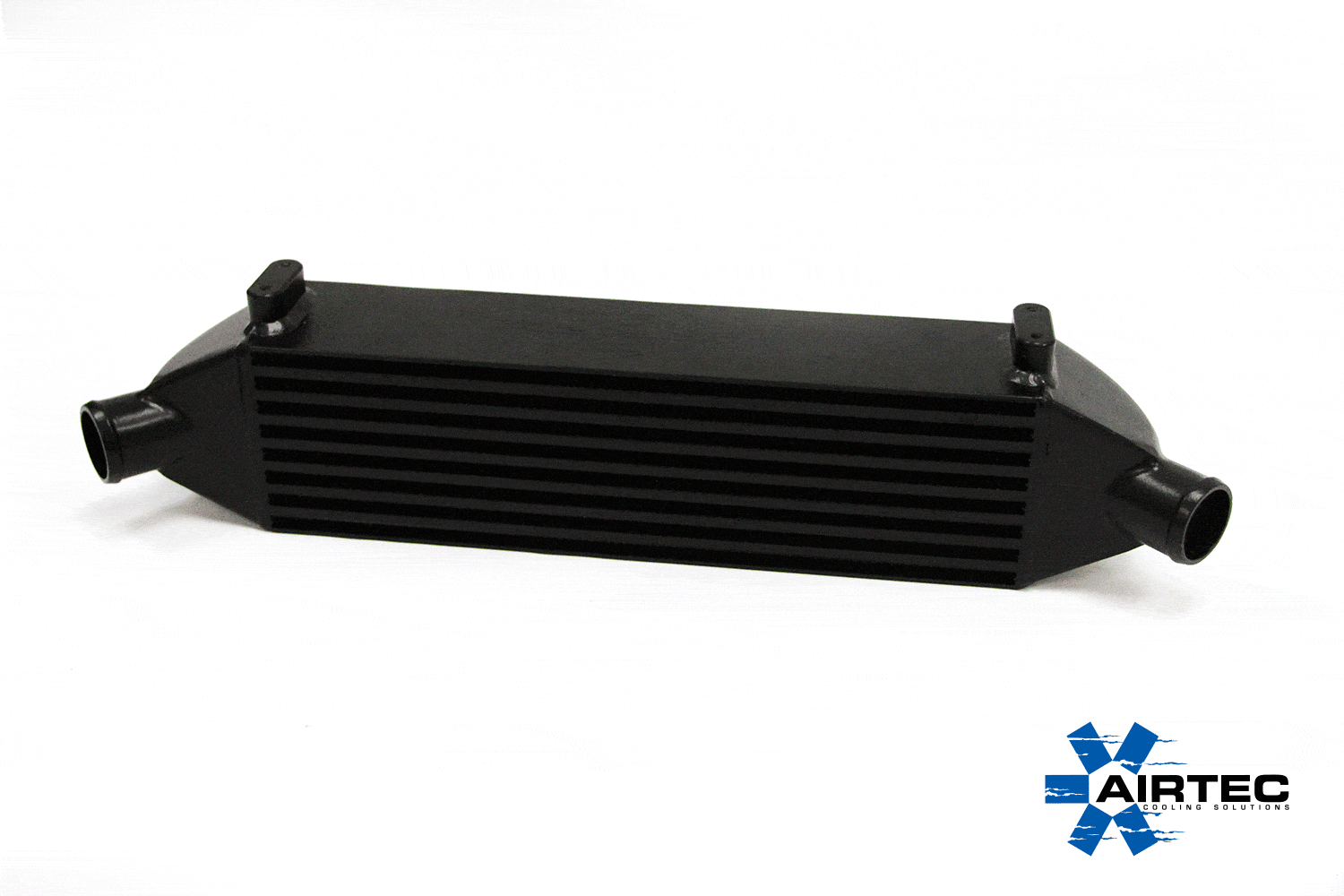

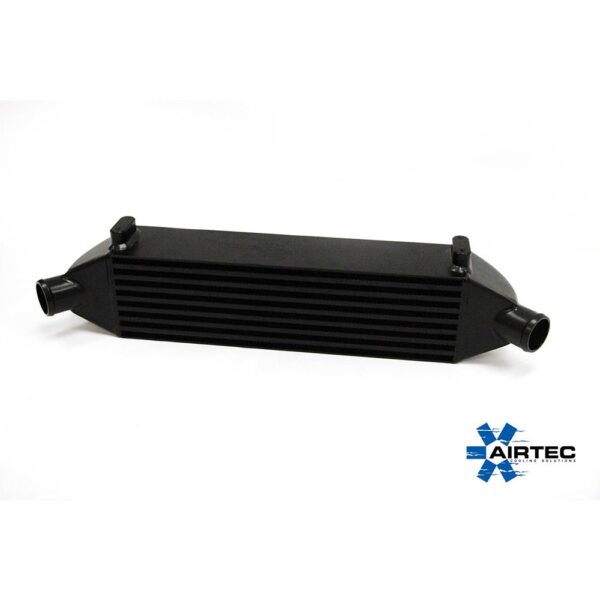

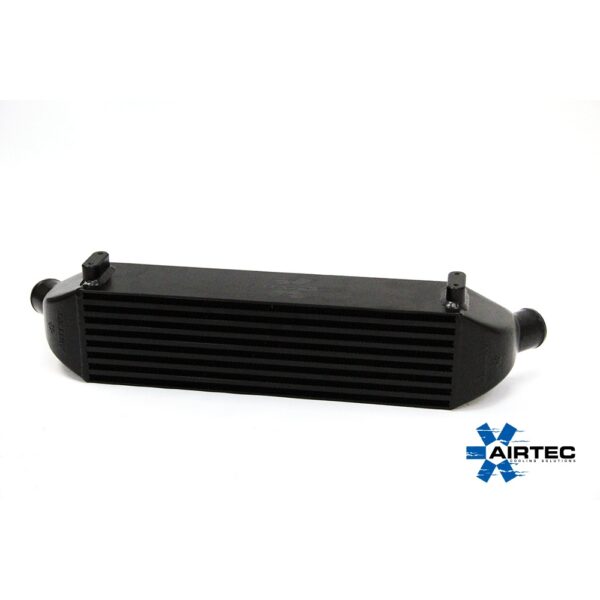

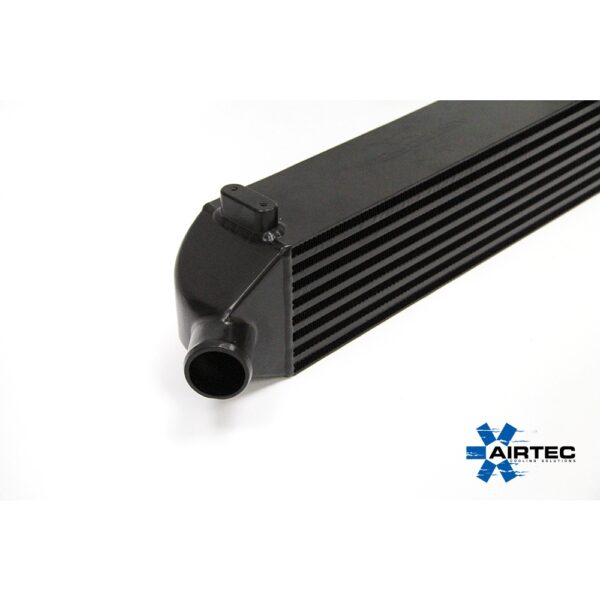

Replace the very restrictive standard OEM intercooler with an AIRTEC Motorsport high-flow, 90mm-core intercooler.

Fitment:
Fits all Euro 5 FWD and RWD Transit, Transit Custom and M-Sport Transit Custom models with the following engines/years:

• 2.0 Duratorq TDDi – 2000-2002
• 2.0 Duratorq TDCi – 2002-2006
• 2.2 Duratorq TDCi – 2006-2016
• 2.4 Duratorq TDCi – 2006-2016

Please note: Some vehicles fitted with plastic intercooler end tanks may require some minor drilling to allow the intercooler to fit, as two of the mounting holes will need elongating.

Intercooler comes with sensor ports on both sides, with blanks included!

Dimensions:
Height: 140mm
Width: 676mm
Depth: 90mm

Features:

•     90mm thick proven bar and plate core, specced to AIRTEC Motorsport design

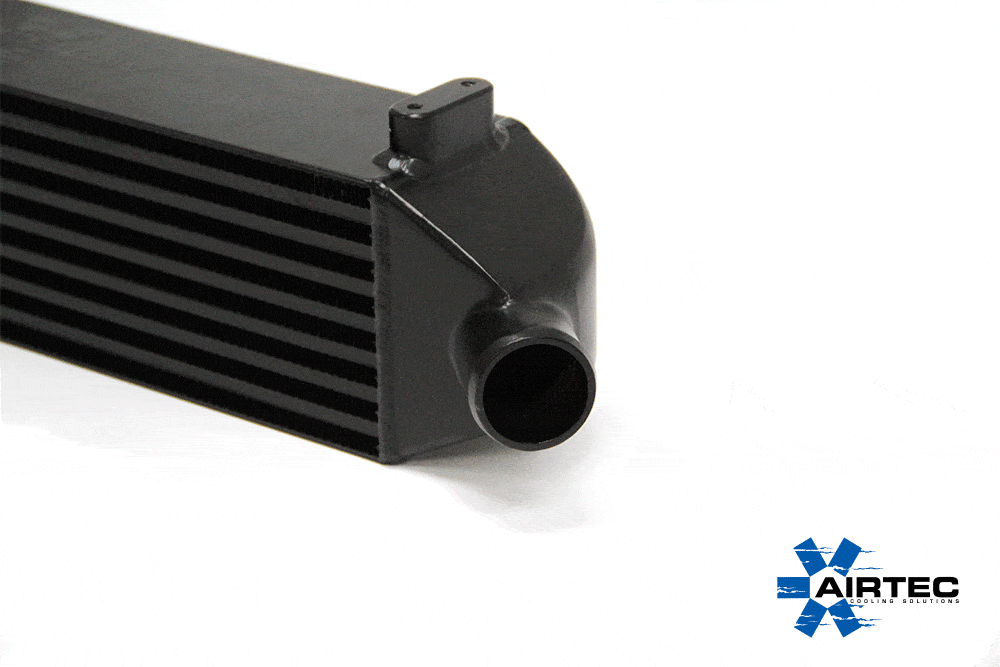

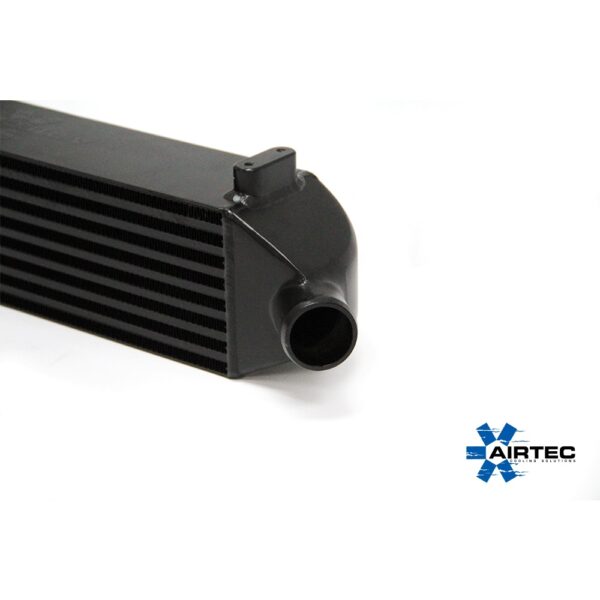

•     AIRTEC logo’d cast end tanks for improved airflow and unbeatable strength
•     Dyno proven, gain BHP
•     Lower intake temps means safer engines
•     Fitting takes approx. 1-2 hours depending on experience and equipment
•     3-year unlimited mileage warranty
•     Available in Pro-Series black
•     AIRTEC logo available at no extra charge
•     Unbeatable value for money

Registered Design Right number: Application Pending

AIRTEC part no: ATINTFO32
