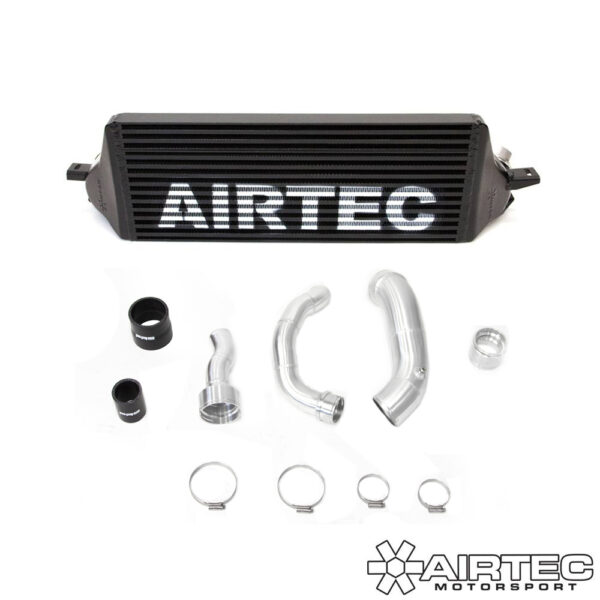

AIRTEC Intercooler Upgrade and Stage 1 Boost Pipe Kit for Mini F56 JCW

Technical Data

As part of our expanding Mini product range, AIRTEC Motorsport is proud to launch our intercooler upgrade for the F56 JCW model, suitable for track or fast road use.

In order to ensure there is no noticeable loss in performance during extended periods of hard driving, we have developed a larger, freer-flowing intercooler that is a direct replacement for the smaller and more restrictive OEM item.

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a taller core with  increased depth. This offers a massive increase in overall capacity in comparison to the original intercooler, as well as an increase in frontal area over standard, which allows it to make the most of the air flow provided.

Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

Available in a high quality powder coated black finish, the comprehensive kit is a direct replacement comes with all fixtures and fittings, as well as detailed fitting instructions.

Also fits the following models:
MINI Clubman F54 – JCW ALL4 – Clubman, B48 – 2014 to 2019
MINI Countryman F60 – JCW ALL4, Countryman, B48 – 2015 to 2019

Dimensions:
Width: 810mm
Height: 230mm
Depth: 140/40mm stepped
Capacity: 22.1 litres
Front area: 1,870cm²

Features:

• Stepped intercooler design for maximum flow
• Designed and manufactured in the UK by AIRTEC
• AIRTEC cast end tanks for improved air flow and unbeatable strength
• Increase in overall capacity compared to original intercooler
• Increase in frontal area compared to original intercooler
• 3-year unlimited mileage warranty
• Available in Pro-Series black finish
• AIRTEC logo available at no extra charge
• Unbeatable value for money!

Registered Design Right number: Application Pending

AIRTEC part no: ATINTMINI07
