AIRTEC Motorsport Front Mount Intercooler for Audi RSQ3 F3

Technical Data

Freshly developed at AIRTEC HQ in the UK, we’re proud to launch our uprated front mount intercooler kit with integrated crash bar design (replaces the stock crash bar) aimed at modified Audi RSQ3 F3 owners who want the very highest level of cooling efficiency, power and performance for fast road use.

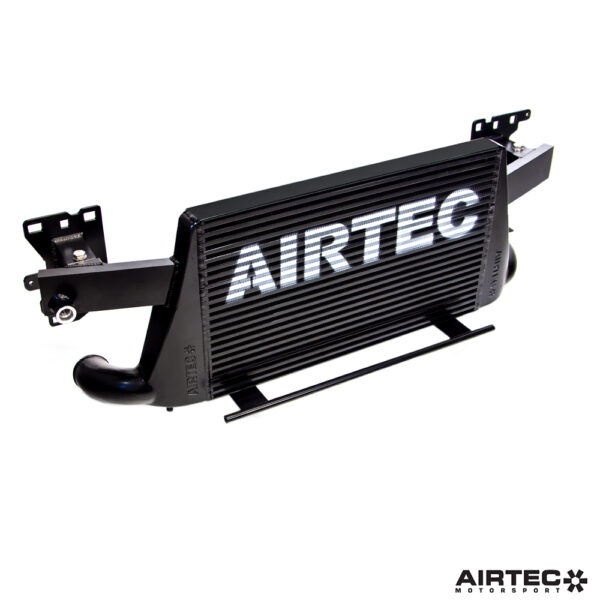

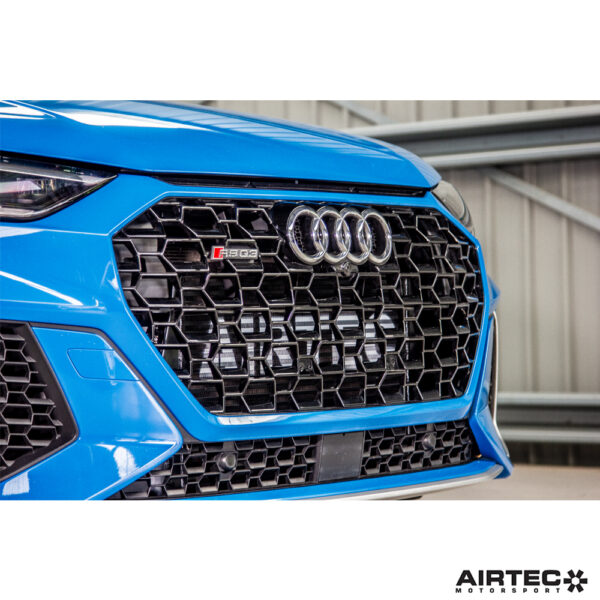

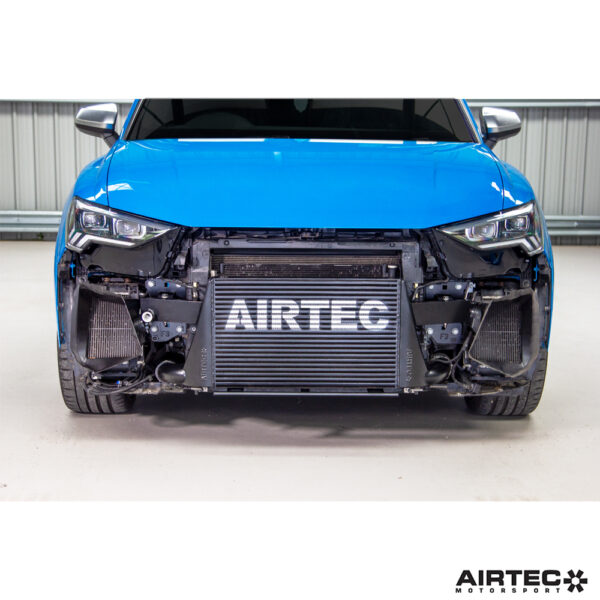

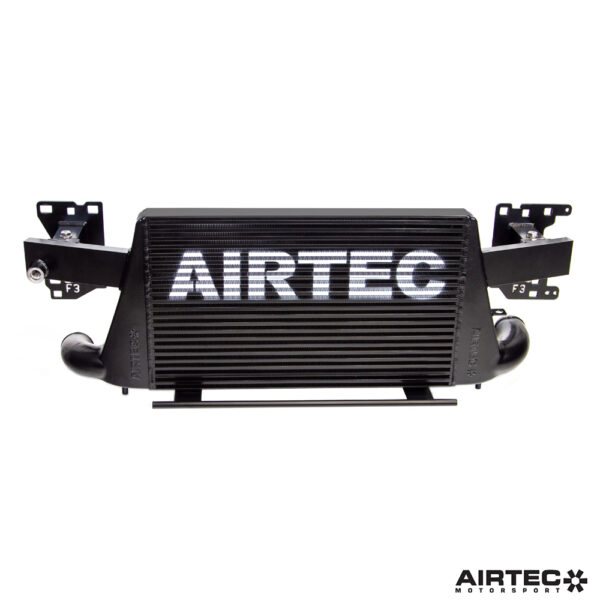

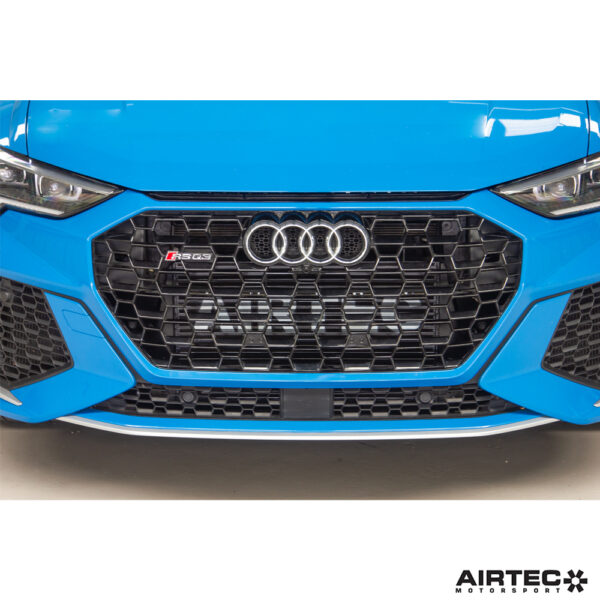

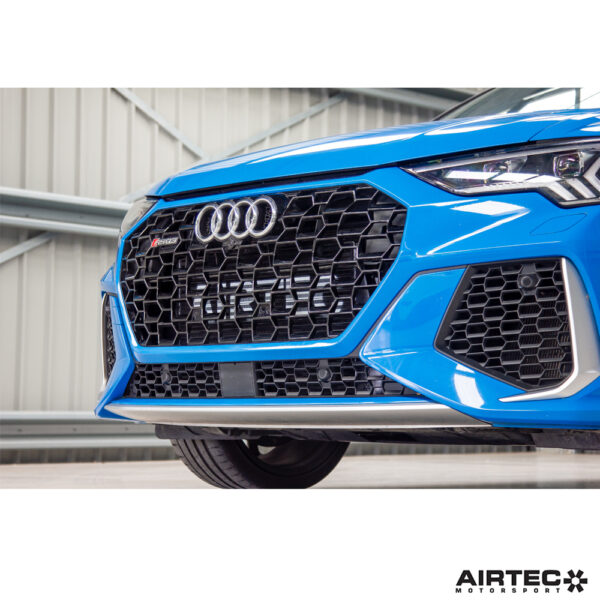

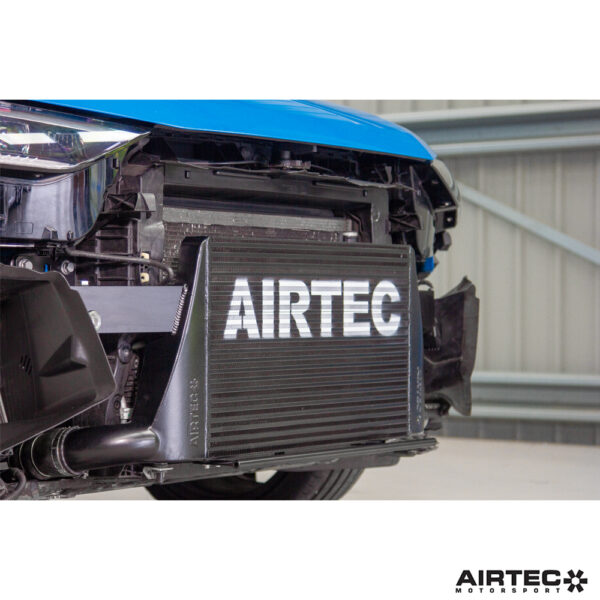

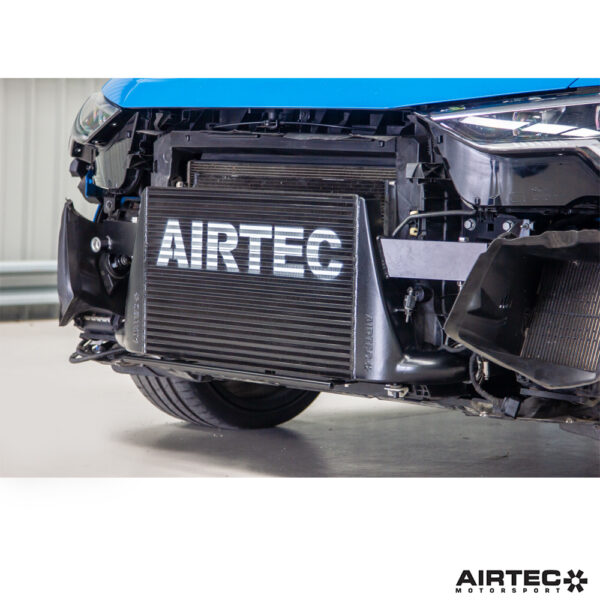

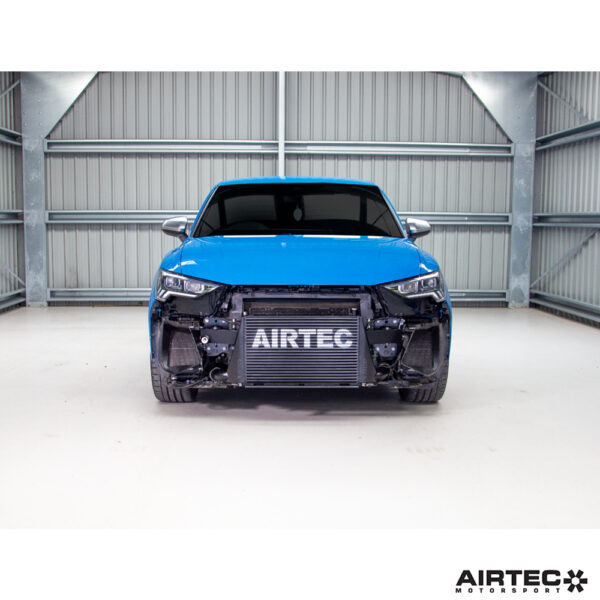

Our solution to increasing the intercooler’s size and performance within the confines of the limited space behind the bumper is based upon a much larger taller stepped core design. This offers a huge 108% increase in overall capacity in comparison to the original intercooler, as well as colossal 125% increase in frontal area over standard, which allows it to make the most of the air flow provided. Together with our high-flow, moulded one-piece cast end tanks to ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard and by integrating the crash bar into the design, the intercooler makes full use of the vehicle’s entire front grille area while still retaining the towing eye feature.

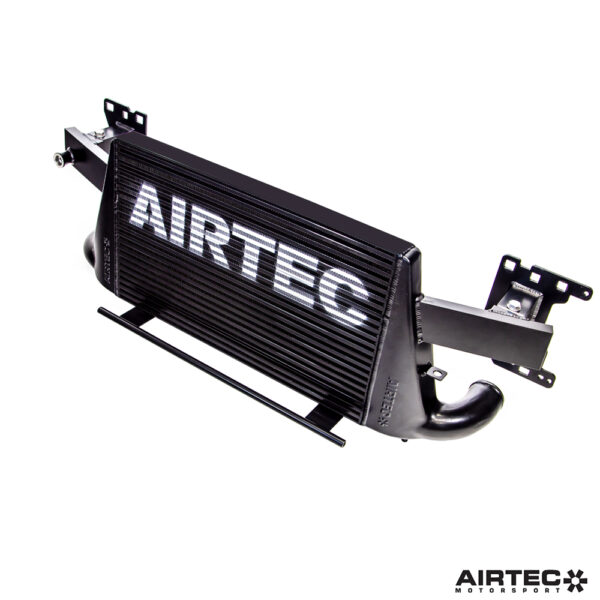

Available in a high-quality powder coated black finish, the comprehensive kit is a direct replacement and attaches to the original boost pipes and clips. It comes complete with all fixtures and fittings, as well as detailed fitting instructions.

Its proven cooling efficiency makes it an essential modification for all modified Audi RSQ3 F3s models.

Dimensions:
OEM intercooler:
Width: 640mm
Height: 163mm
Depth: 80mm
Capacity: 8.3 litres
Front area: 1,043cm²

AIRTEC Motorsport intercooler:
Width: 627mm
Height: 375mm

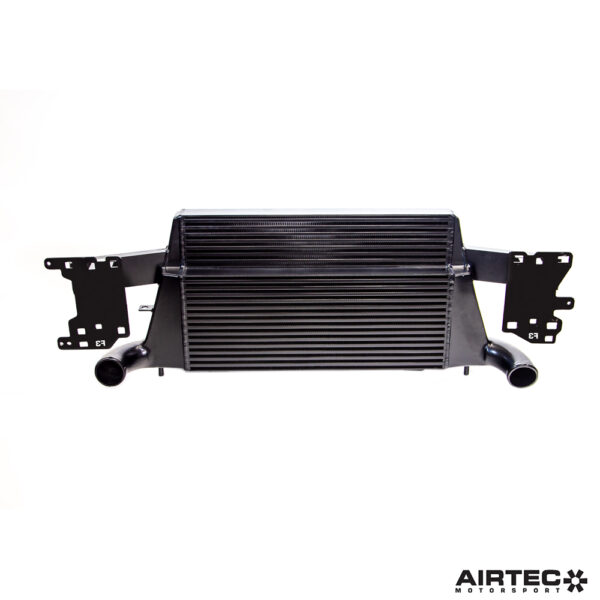

Depth: 100mm to 50mm stepped core
Capacity: 17.3 litres
Front area: 2,351cm²

Features:

• Specifically designed for the RSQ3 F3 model
• 108% increase in overall capacity in comparison to original
• 125% increase in frontal area over standard
• Huge increase in cooling ability
• Reduced charge temperatures
• Incorporated crash bar design
• High-flow, moulded one-piece cast end tanks
• Powder coated black finish

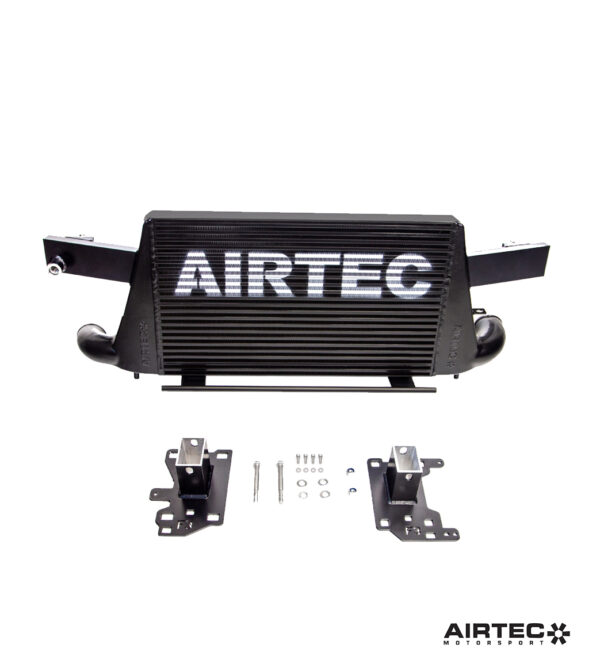

• Includes fittings and fixtures
• Detailed fitting guide included

AIRTEC Part No: ATINTVAG48
