AIRTEC Motorsport RS Style Crossover Pipe for Focus ST 225
You asked and we listened – AIRTEC Motorsport is proud to launch our RS-style crossover pipe for the Mk2 Focus ST 225, suitable for track or fast road use.
AIRTEC Part No: ATMSFO136
Technical Data
You asked and we listened – AIRTEC Motorsport is proud to launch our RS-style crossover pipe for the Mk2 Focus ST 225, suitable for track or fast road use.
The challenge

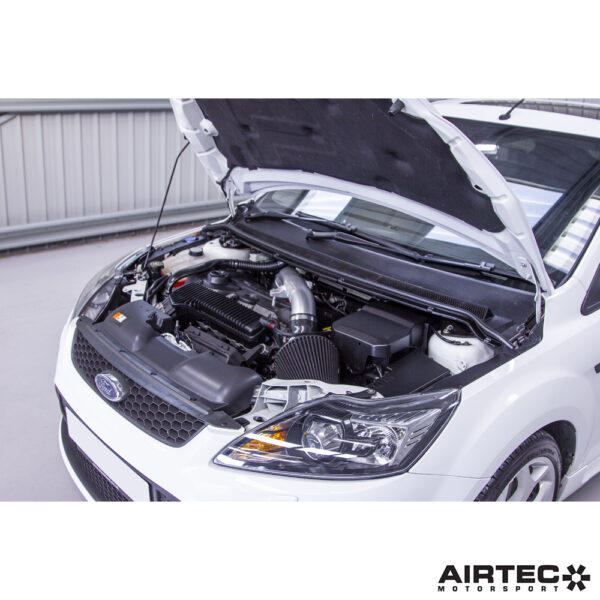

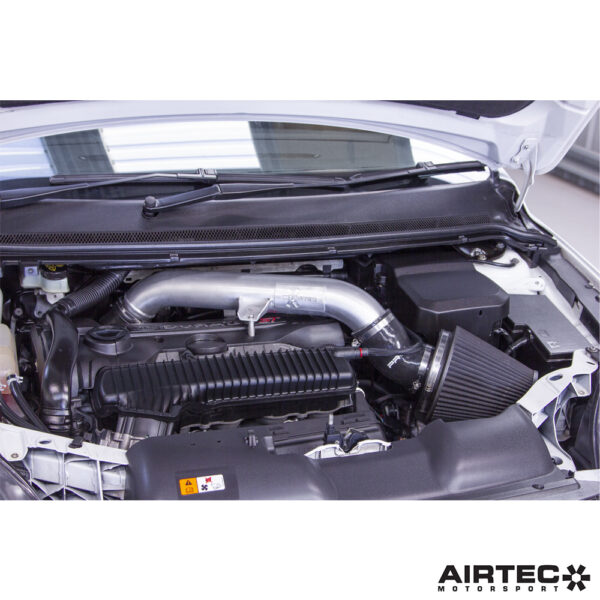

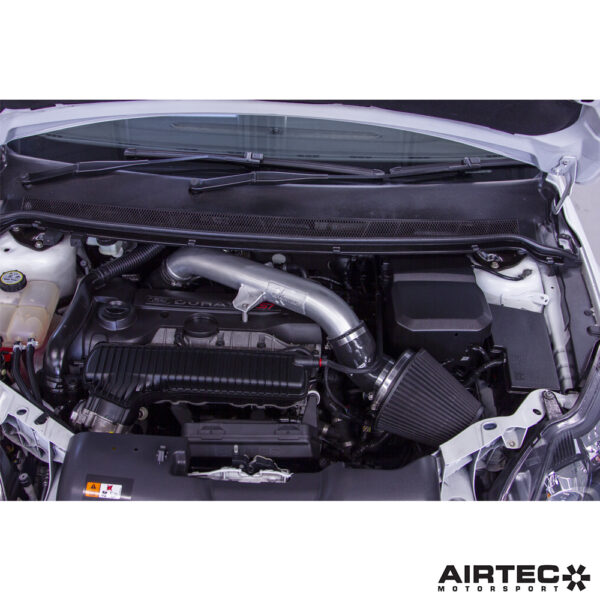

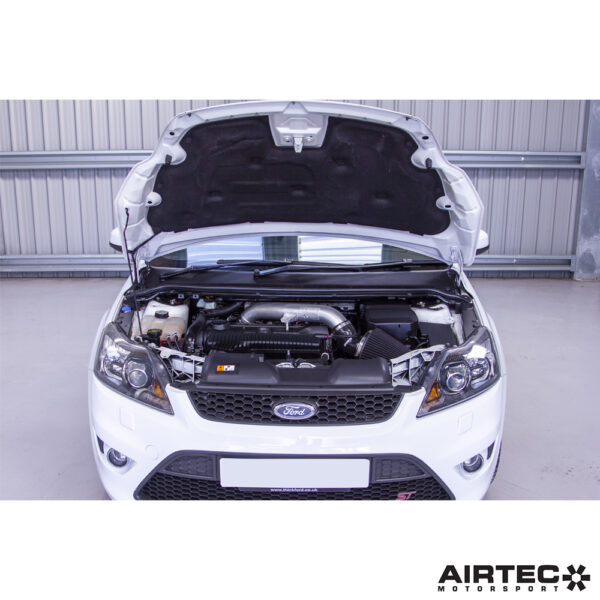

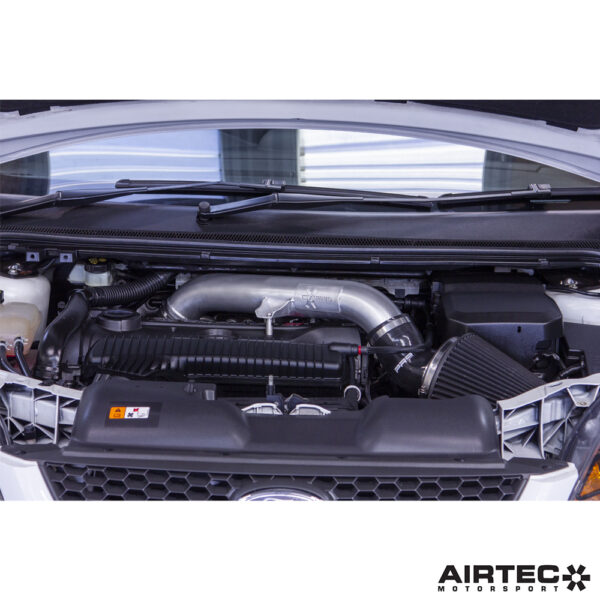

We’re always eager to develop parts and products that cater for our customer’s needs and with interest shown to produce an RS-style intake pipe that crosses over the top of the engine instead of working around it to reduce restriction and improve sound, response as well as under bonnet looks.
The solution

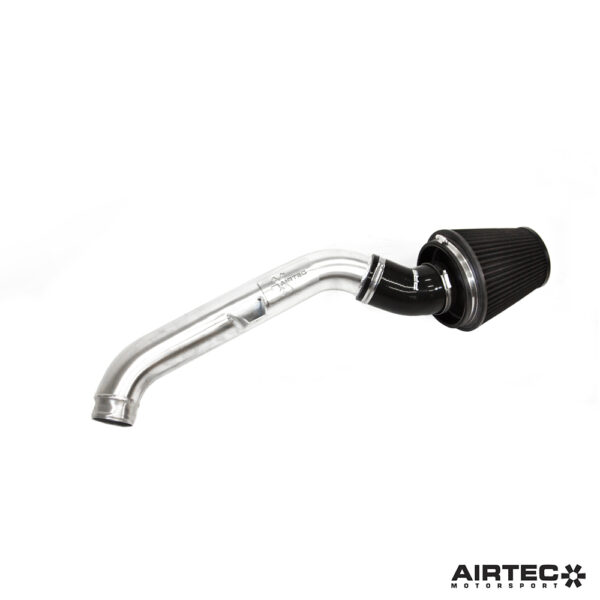

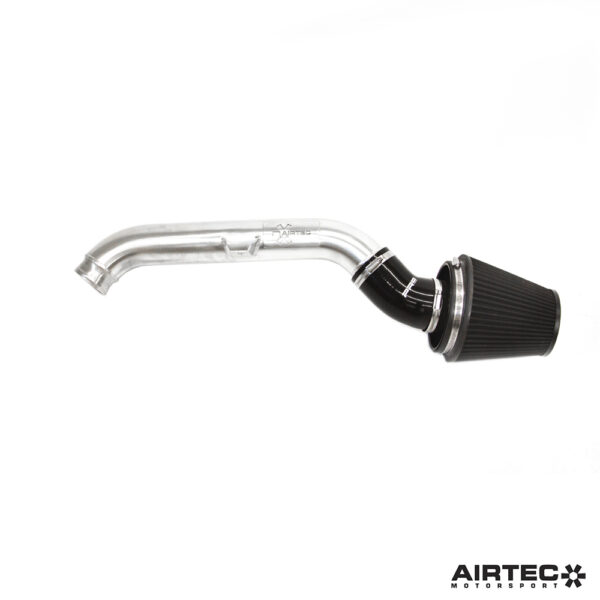

Designed to exclusively to fit the ST model but in a similar style to our incredibly popular Mk2 Focus RS enlarged crossover pipe, this direct replacement pipe offers a shorter and simpler path from the air filter to the turbo inlet.
Where as the original ST intake pipework deviates from 80mm down to 70mm through a series of bends, including a harsh 90-degree turn, our RS-style pipe measures 76mm throughout the entire length and removes the restrictive 90-degree bend. It also allows the fitment of our huge Focus RS Group A filter; which is the largest filter we offer, whilst retaining the original MAF sensor, so there is no need to adjust the ECU calibration.

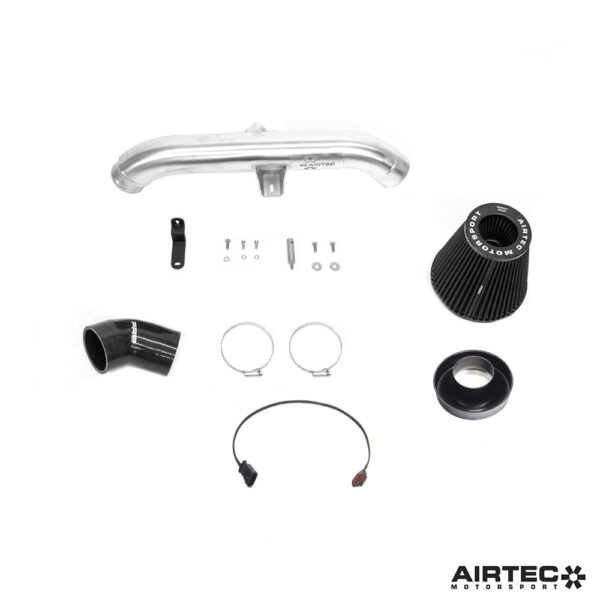

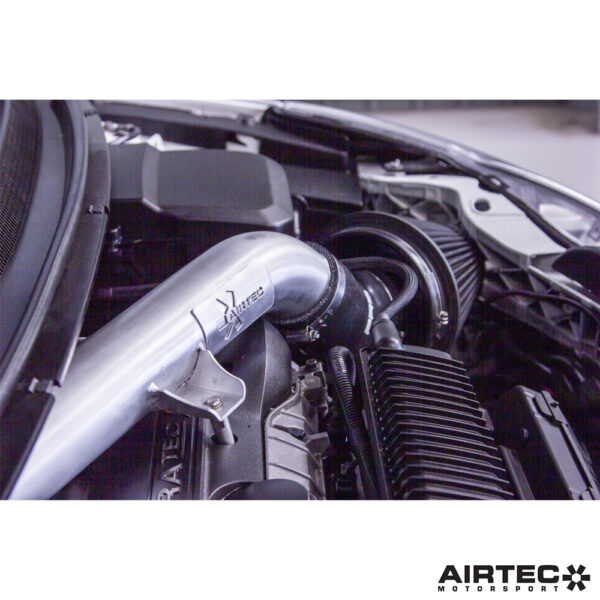

Made from high quality aluminium, it is offered in either Motorsport brushed silver or powder coated black finishes and the repositioned MAF sensor housing at the back of the pipe together with the laser cut AIRTEC Motorsport plaque complete the clean cut design. The comprehensive kit also includes a Pro Hoses silicone connector and all fixtures and fittings, which makes installation a simple task.

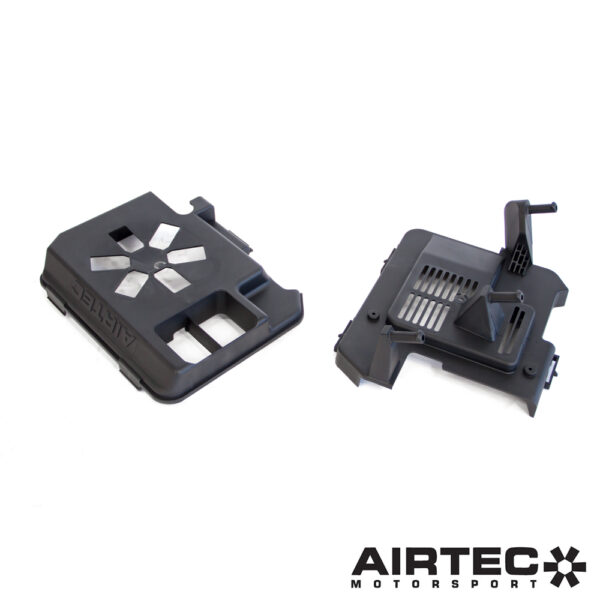

Please note: This item can only be fitted with an RS-style ECU holder to relocate the original ECU, which can be selected as an option.

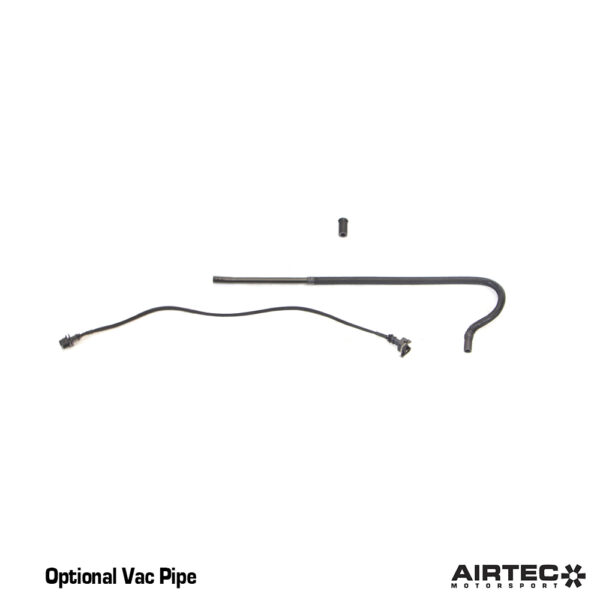

Available with optional vacuum pipe (highly recommended) that reroutes to suit the new intake pipe layout correctly.
Specification:
- Increase in overall internal diameter
- Removes restrictive 90-degree bend
- Improves response and sound
- RS-style improved appearance
- Direct replacement fitment
- Made from high quality aluminium
- Retains original MAF sensor repositioned for improved look
- Available in Motorsport brushed silver or powder coated black finishes
- Includes all fixtures and fittings
- Features detailed fitting guide
- Optional rerouted vacuum line and RS-style ECU holder
AIRTEC Part No: ATMSFO136
