AIRTEC Stage 3 Intercooler Upgrade for Peugeot 207 GTI

Technical Data

As part of our expanding Peugeot and Citroen product range, AIRTEC Motorsport is proud to launch our Stage 3 intercooler upgrade for the 207 GTi 1.6 turbo to offer increased performance through reduced charge temperatures in comparison to the original intercooler. This is particularly important to remapped examples.

Our solution to improving the OEM intercooler set up within the confines behind the bumper assembly is based upon a high flow, twin-pass core design, that’s wider, taller and deeper than the original. This offers a massive increase in frontal area and a huge increase in capacity, which allows it to make the most of the air flow provided. However, there is still plenty of air flow to the top section of the radiator, which is essential for hotter climate countries.

Together with our high-flow, moulded one-piece cast end tanks ensure flow is directed correctly and efficiently, the AIRTEC Motorsport intercooler offers much greater efficiency and volume over standard.

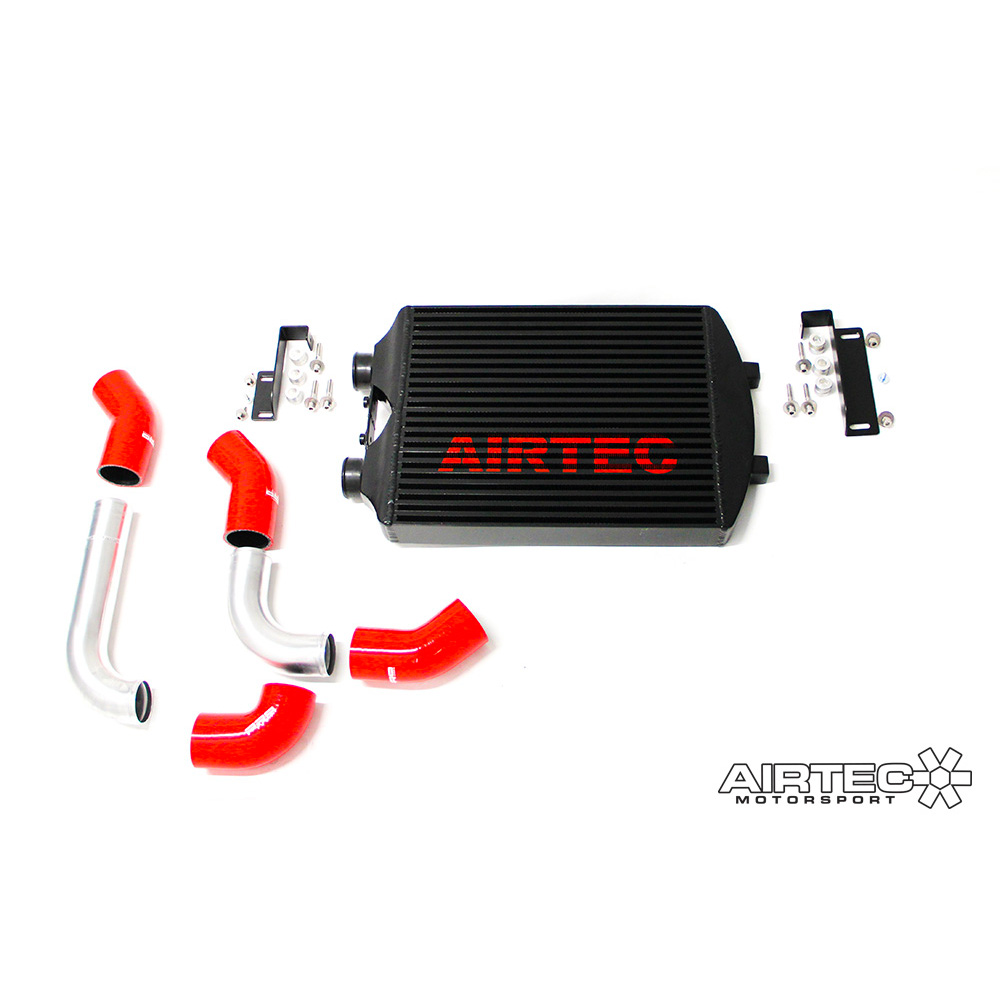

Despite this improvement, the kit fits neatly behind the original bumper and requires no trimming or cutting, and can be reverted back to standard with no issues. The comprehensive fitting kit includes Pro Hoses silicone connectors and pipework as well as all the correct fixtures and fittings and step-by-step installation instructions.

The intercooler is available in a Pro-Series Black finish (with or without the AIRTEC logo).

TESTED
Rolling road tested at AmD Tuning in Essex.

AIRTEC Motorsport Intercooler:
Dyno cell ambient temperature: 19 degrees.

Run 1
In – 190 degrees
Out – 23 degrees

Run 2
In – 193 degrees
Out – 25.5 degrees

Dimensions
Width: 603mm (including end tanks)
Height: 378mm
Depth: 60mm

Features

• Specifically designed for the 207 GTi platform
• Tried and tested core design that’s proven to work
• Huge increase in cooling ability
• High-flow cast end tanks
• Pro Hoses silicones and pipework included
• Powder coated black finish
• Includes fittings and fixtures
• Detailed fitting guide included

AIRTEC part no: ATINTP&C9
