Revo Stage 1 Software for VW Golf Mk7 R 2.0 TSI

	Power	Torque
Stock	300ps	280lbft
REVO Stage 1 Software	from 350ps to 375ps	from 330lbft to 360lbft
NOTE: Power is dependant on Fuel Quality, Performance Settings and Conditions

From £754.74 (inc VAT)

£628.95 (exc VAT)

Technical Data

ONLY THE DRIVEN

Revo offer some of the most substantial performance increases on the market. How this power is delivered however is far more important to us, which is why peak figures form part of a much bigger picture and are never the sole focus during the development process. it’s all about the drive, and only Revo offers a perfected balance of power, economy and an exciting drive.

The Revo tuning philosophy ensures that impressive performance benefits are balanced with useable, reliable power delivery that enhances the way your vehicle drives. Development on the road and race track, as well as testing in controlled dyno conditions, gives you a clearer picture of the performance you can expect from Revo ECU Software. Testing in this way plays an important role in ensuring the highest quality products and delivering the driving experience you demand.

Only Revo performance ECU Software maintains factory safety levels and additional driving features, so you can enjoy each mode’s unique characteristics as usual. You can also choose between two pre-set fuel quality modes depending on which fuel you use. If you would like the ability to do this yourself then the Revo SPS Software Switch is also available separately, which can be used to quickly switch fuel modes and access an additional Anti-Theft mode without the need to visit a Revo Authorised Dealer.

SOFTWARE FEATURES

SPEED LIMIT UNLOCK

The top speed limit for this vehicle has been removed.

TEMPERATURE PROTECTION

Enhanced engine cooling and oil temperature management.

COLD START PROTECTION

Boost is limited until safe oil temperature is reached.

SERIAL PORT SWITCH (SPS)

Switchable software for Stock, 2 performance modes and Antitheft.

GLOBAL DEVELOPMENT PROGRAMME

Only Revo operates a Global Development Programme through its network of over 400 Revo Authorised Dealers worldwide. Access to vehicles on this scale enables the calibration team to fine-tune products before release, testing products in a wide range of climates and conditions including altitude, fuel quality, humidity. This also allows Revo to test how Revo products perform in different driving scenarios and formed a vital part in the development of Performance ECU Software.

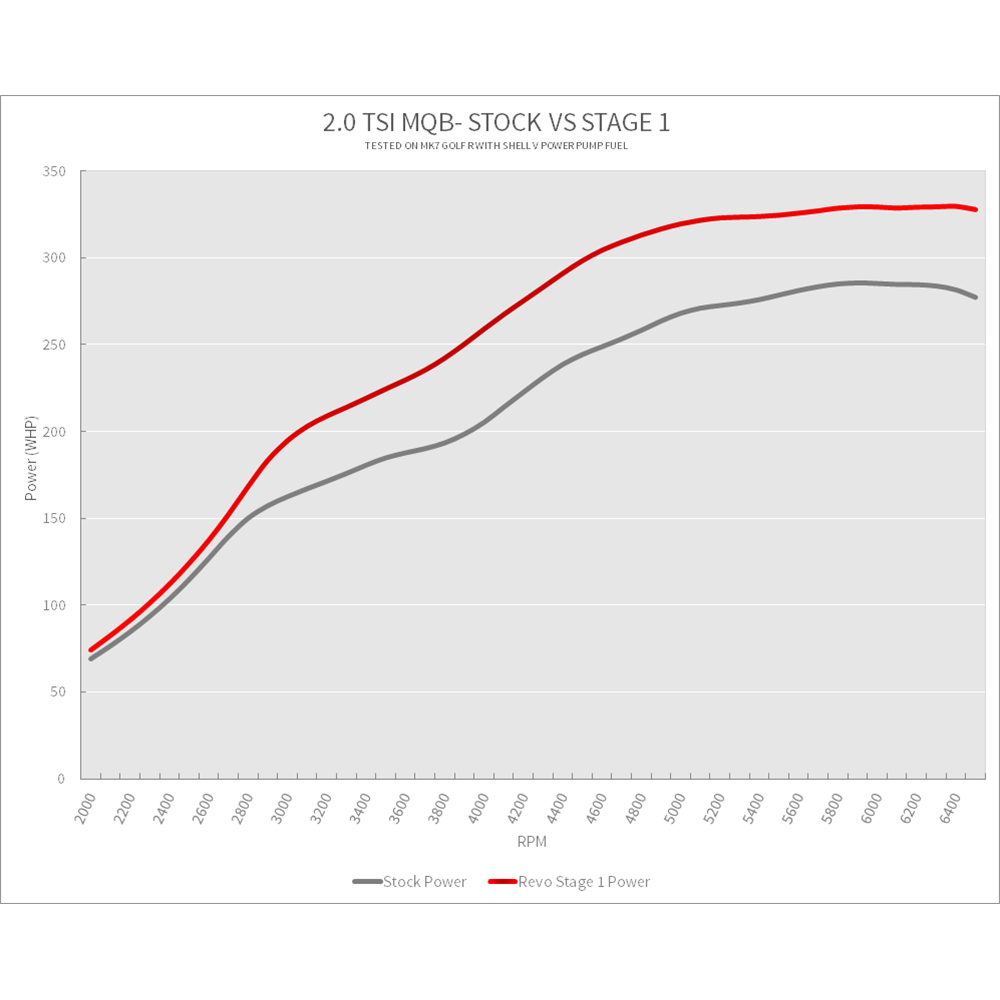

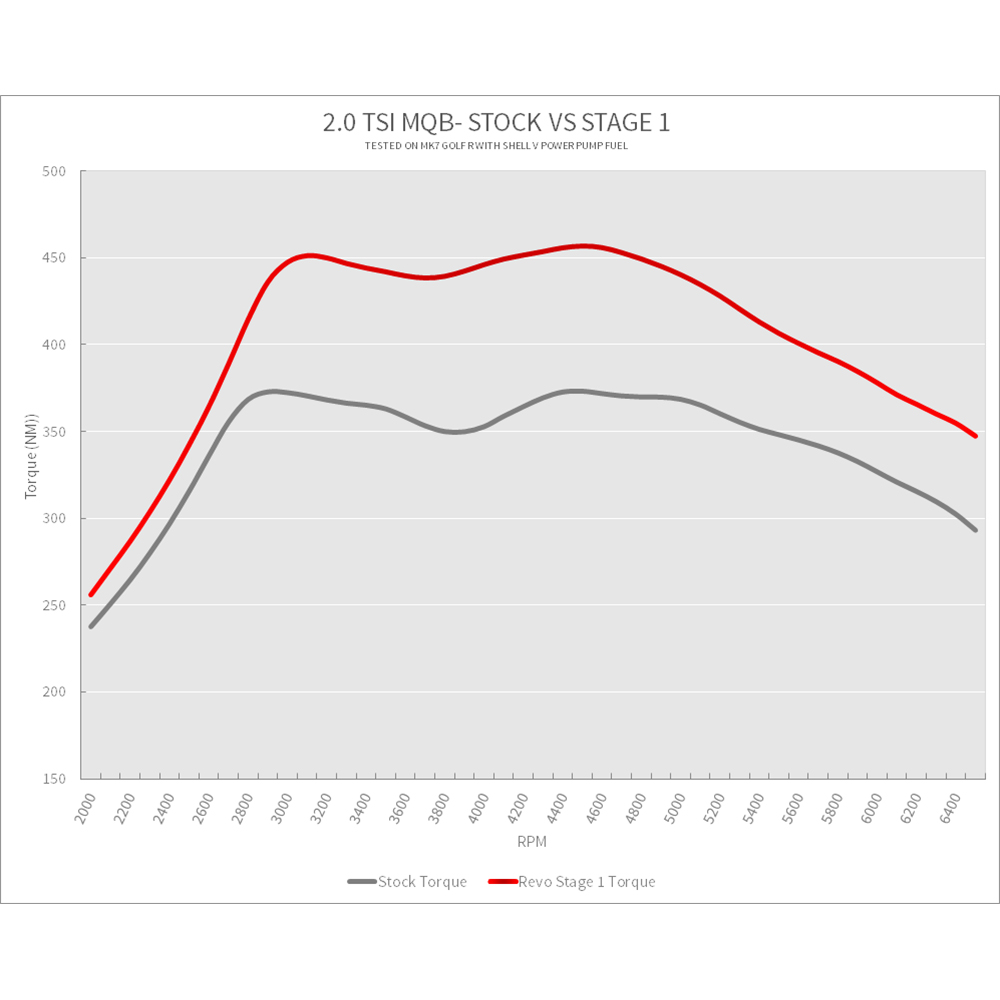

Power Graphs

PERFORMANCE TIMES

Performance testing was carried out on a private track in the UK with an ambient temperature of 17ºC. 2014 VW Golf R with DSG transmission. Revo RV019 19″ wheels with road tyres, traction control off and 99RON Shell vPower. The average performance times are taken from 5 consecutive runs.

	0-60 mph	0-100 mph
Stock (Claimed)	4.90 s	12.30 s
Revo Stage 1	3.71 s	9.05 s

ADDITIONAL DATA

Performance Data

Performance data are taken from Dyna Pack hub dyno, and all figures are quoted at the hub. Revo software comparison is between the previous and new version.

Peak Performance: 328HP / 455NM
Peak Gains over stock: +53HP/ +81NM

Revo offers a limited lifetime update for main dealer/factory updates and includes free of charge software updates as they become available.

ADDITIONAL FEATURES

COLD START PROTECTION FEATURE

For engine oil to work effectively and lubricate your engine it needs time to warm up. When you first start your car, the cold oil is at its thickest, producing higher oil pressure when pumped around the engine putting extra pressure on oil seals. As the engine temperature increases, so do the oil temperature. This thins the oil, enabling it to run more freely and better lubricate the moving parts of your engine. Cold Start Protection helps protect engine components by limiting turbo boost until the oil temperature increases and reaches optimum operating levels.

Oil below 70ºC: Boost limited
Oil above 70ºC: Full boost available

TEMPERATURE PROTECTION

Testing indicated that in high-temperature conditions (rolling road, high ambient temps, and prolonged Vmax use) oil temperatures can climb to an undesirable level. Revo Temperature Protection is an additional safety feature that reduces overall load as the oil temperature hits a set limit. The oil cooler valve opens sooner with Revo Software to ensure earlier cooling of oil. This feature actively monitors exhaust gas temperatures, adapting the requested load (power) to ensure they stay within safe parameters. If EGT’s reach an upper-temperature limit, then power is automatically reduced until the engine returns to a safe operating temperature.

SWITCHABLE SOFTWARE

Using the Revo SPS Software Switch you can take advantage of the multiple options in your ECU Software. The patented OBD2 interface is the ultimate compliment to Revo performance software, giving you the ability to switch between 3 fuel performance modes and an Anti-Theft mode.

SPS Position 1 – Stock Mode
SPS Position 2 – 97ron fuel / Regular torque for manual vehicles with stock clutches
SPS Position 3 – 98ron+ fuel / Higher torque for DSG or manual vehicles with an uprated clutch.
SPS Position 4 – Anti Theft

Simply select a program, plug in, wait a few seconds, remove the SPS device and start the car. It’s simple and there’s no fixed switch to install in the vehicle.

ANTITHEFT MODE

Revo Software is installed with a built-in Antitheft Mode, which is accessible with the Revo SPS Software Switch. This mode disables throttle response and limits RPM, adding an extra level of security to your pride and joy.
